S.W.C Thermal Cutoff SW-6 Series Specification
Temperature rating
| Cat NO. | Tf | Cutoff temperature | Th | Ampere | Voltage | UL |
|---|---|---|---|---|---|---|
| SW-601T | 92℃ | 89℃+2℃,-2℃ | 60℃ | 2A | 50V | □ |
| SW-602T | 98℃ | 94℃+2℃,-2℃ | 60℃ | 2A | 50V | □ |
Application - Li-ion batteries used in laptops and mobile phones.
□ = Applied

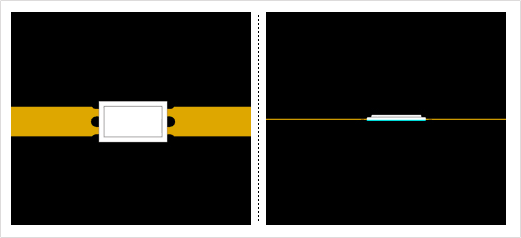

Configuration
Marking
- On the body of each thermal fuse, marks should be printed as follows :
- - Part number : SW - 6XXT
- - Rating : function temperature(℃)
